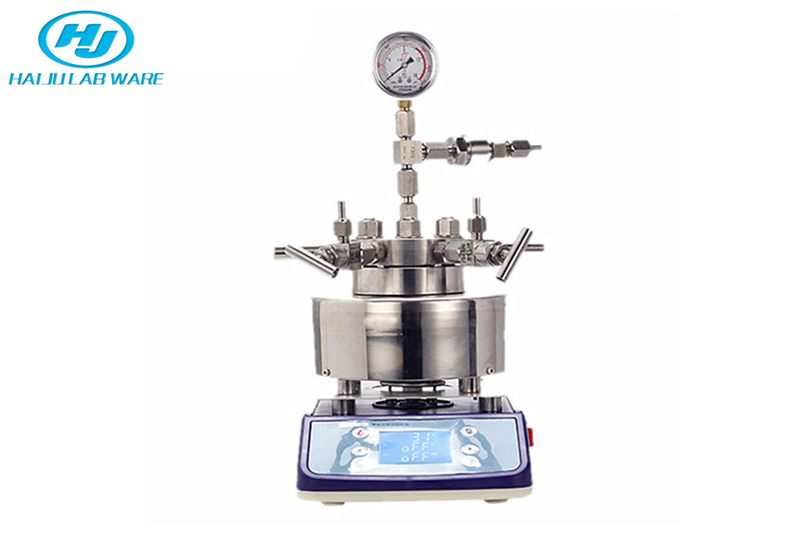

Lab High Pressure Stainless Steel Hydrothermal Synthesis Stirring Micro Autoclave Reactor

Home » Product list » LAB Instrument » Lab High Pressure Stainless Steel Hydrothermal Synthesis Stirring Micro Autoclave Reactor

Lab High Pressure Stainless Steel Hydrothermal Synthesis Stirring Micro Autoclave Reactor

1.Volume: 50 ml, 100 ml, 250 ml, 500 ml for custom-ordering.
2.Body material: stainless steel /pure titanium/hastalloy material (optional).
3.Working temperature: 250 ℃ / 450 ℃ (optional).
4.Working pressure: 10 MPa / 60 MPa (optional).
5.Valve and connection materials: SU316L stainless steel.
6.Reactor liner: PTFE, PPL, quartz glass (optional), liner has advantages of strong anti-corrosion, easy to disassemble and convenient to clean, etc.
7.Optical window material: adopted polishing JGS2 quartz glass (pressure-proof window) or sapphire mirror.
8.Optical window diameter: 30 mm - 60 mm (optional).

Volume:	50ml 100ml 250ml 500ml

Inquire Add to Basket

Brand: HAIJU

Product Description

HAIJU LAB Lab High Pressure Stainless Steel Hydrothermal Synthesis Stirring Micro Autoclave Reactor

Volume: 50 ml, 100 ml, 250 ml, 500 ml for custom-ordering.
Body material: stainless steel /pure titanium/hastalloy material (optional).
Working temperature: 250 ℃ / 450 ℃ (optional).
Working pressure: 10 MPa / 60 MPa (optional).
Valve and connection materials: SU316L stainless steel.
Reactor liner: PTFE, PPL, quartz glass (optional), liner has advantages of strong anti-corrosion, easy to disassemble and convenient to clean, etc.
Optical window material: adopted polishing JGS2 quartz glass (pressure-proof window) or sapphire mirror.
Optical window diameter: 30 mm - 60 mm (optional).
Temperature-control heating device and uniform heat transfer design.
Gas inlet function.
Online temperature and online pressure display
Strong magnetic stirring function under bottom (users can choose our company’s overhead mechanical stirring method in case of
high viscosity or large granular solid materials optionally).
There has auxiliary cooling or heating function in reactor.
With a high precision adjustable auto-decompression protection.
Two or more online charging function under high temperature and high pressure (optional) .
With the gas phase, liquid phase online detection connection pipe.

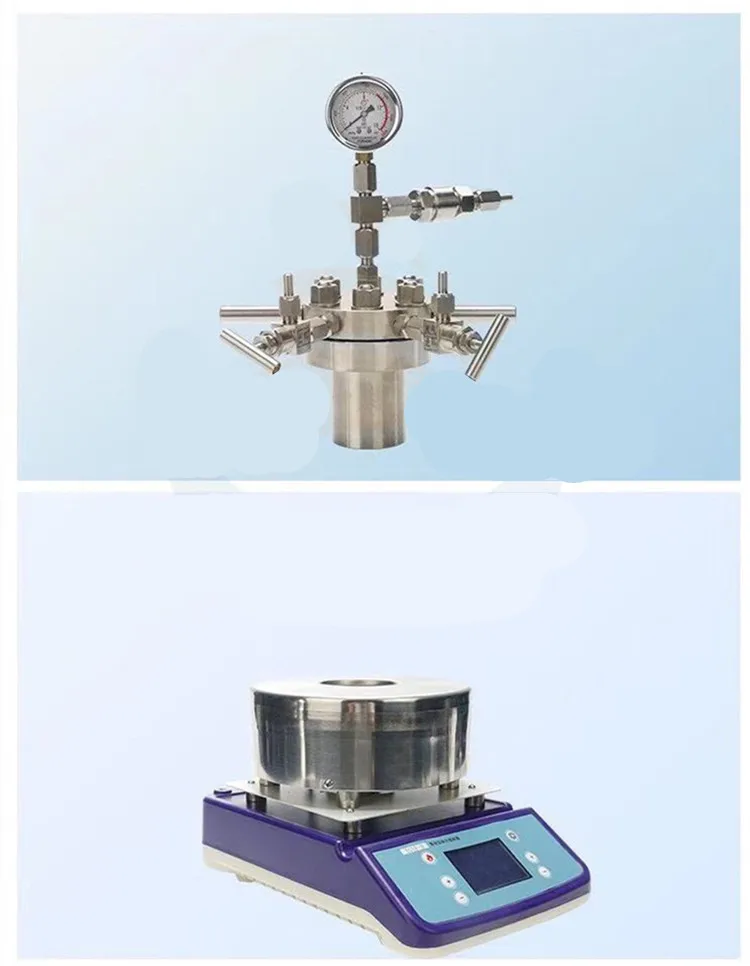

Detailed Images

Features

This product is used for chemistry and chemical engineering synthetic reaction under high temperature and high pressure or catalytic reaction, and such environmental conditions that needs to measure the pressure, temperature, and measuring speed at the same time, and add inert gas protection, pacify pressure and realize online-sampling or online feeding.

 It is widelu used for the flammable and explosive, highly toxic, precious media and other highly permeable chemical medium for stirring reaction. Used in the process of vulcanization and fluoridation of petroleum, chemical, organic synthesis, polymer
polymerization, Hydrogenation and other non-leakage reactions. With super magnetic stirring function and program temperature control functions.
