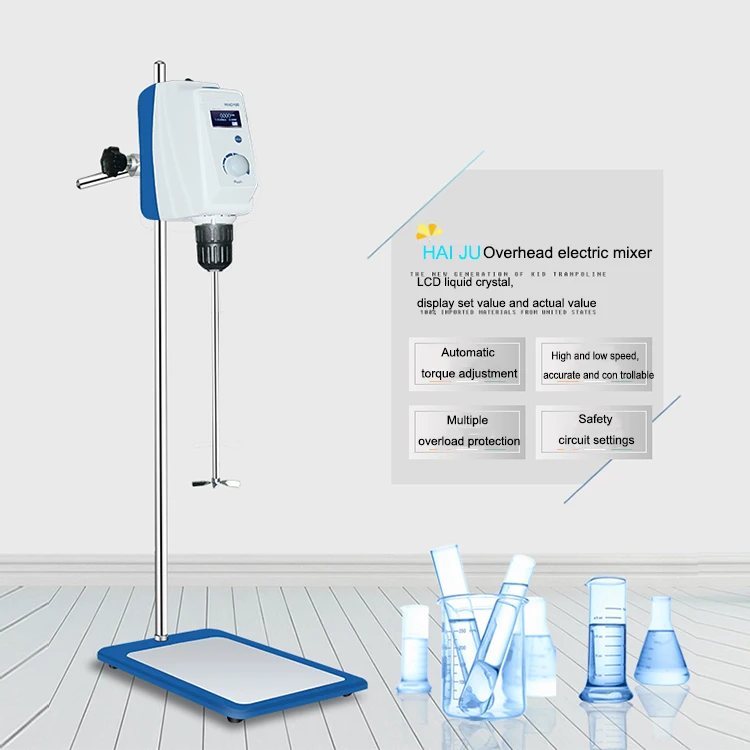

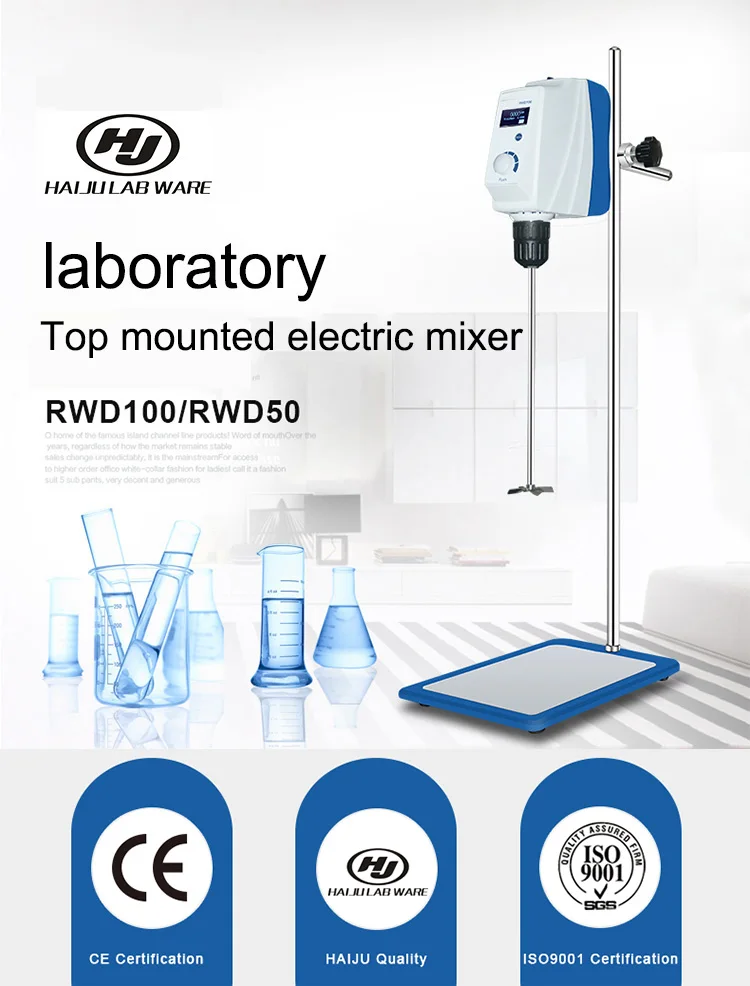

LCD Display Overhaed Stirrer(RWD)
Home » Product list » LAB Instrument » LCD Display Overhaed Stirrer(RWD)
  • HJ-RWD
  • HAIJU
Product Description
Product Paramenters
Product model
RWD 50
RWD 100
RWD 150
Stirring amount L (H, O)
20
40
50
Torque N.cm
40
60
80
Motor input power W
60
120
160
Motor output power W
50
100
150
Weight (kg)
2.6
2.8
3
Power W
70
130
160
Viscosity mPas
10000
50000
80000
Speed range
30-2200
Speed error
<± 3rpm
Motor type

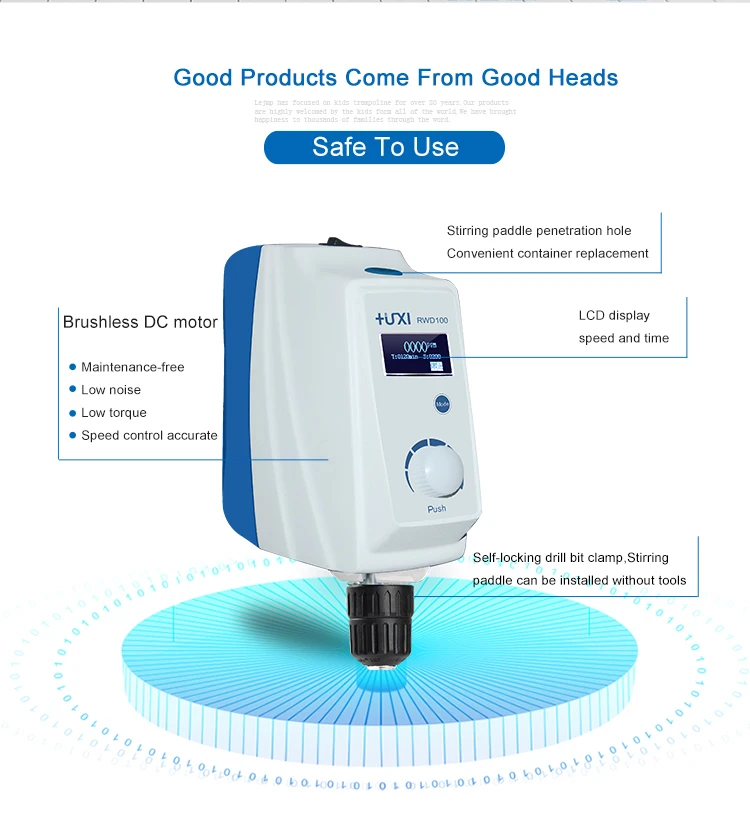

Brushless DC motor
Speed display
LCD
Speed display resolution rpm
± 1
Overload protection
Display failure, automatically stop
Motor protection
Display fault, stop automatically

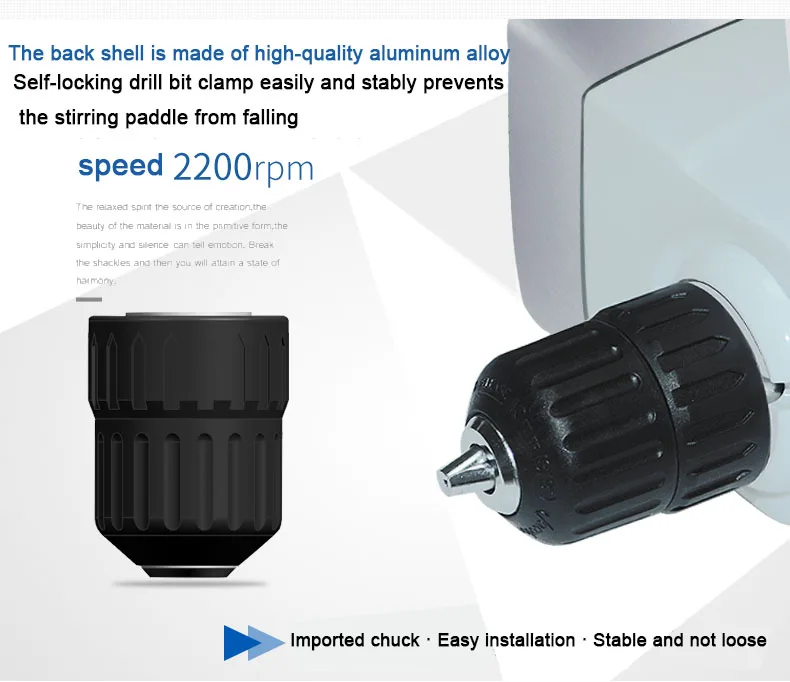

Drill chuck clamping diameter range mm
0.5-10
Dimensions mm (DX WXH)
186x83x220
Protection method
IP42
Allow ambient temperature ℃
5-40
Allow ambient humidity%
80
RS232
Modbus
Voltage VAC
100-240
Frequency HZ
50/60
Safety protection
Chuck protective sleeve safety buckle anti-slip mat
Mixing time setting
Have
Speed mode
Coarse and fine adjustment

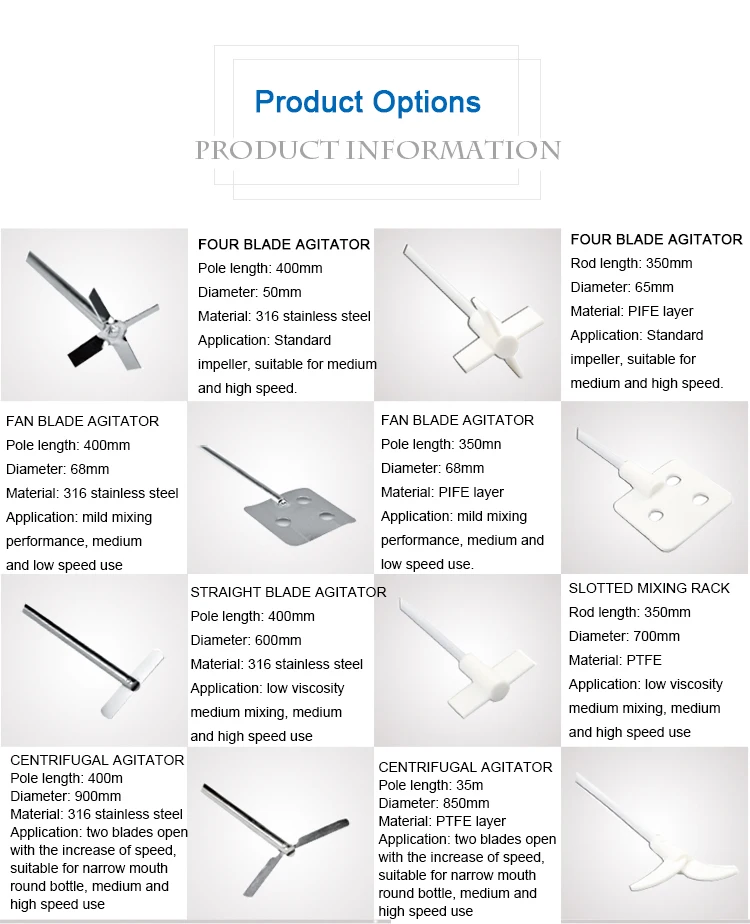

Stirring paddle fixing method
Self-locking chuck
