Magnetic Stirrer With Hot Plate

● All you need is included: Come with teflon-coated stirring bar, support stand with adjustable thermometer holder extends
● Excellent Stirrer Hotplate can up to 716︒F heating temperature with 67.6 oz capacity. It can meet various experimental needs.
● 100~2000 RPM Speed, integrated magnetic stirrer. Heating and stirring at the same time.
● Widely for industrial, agricultural, medical and health, scientific research institutions, colleges and universities laboratory
liquid mixing heating
● SATISFACTION GUARANTEE:100% Money Back or Exchange for Customer Service Satisfaction Guarantee
Availability:
  • SH-2

  • HAIJU

Product Description

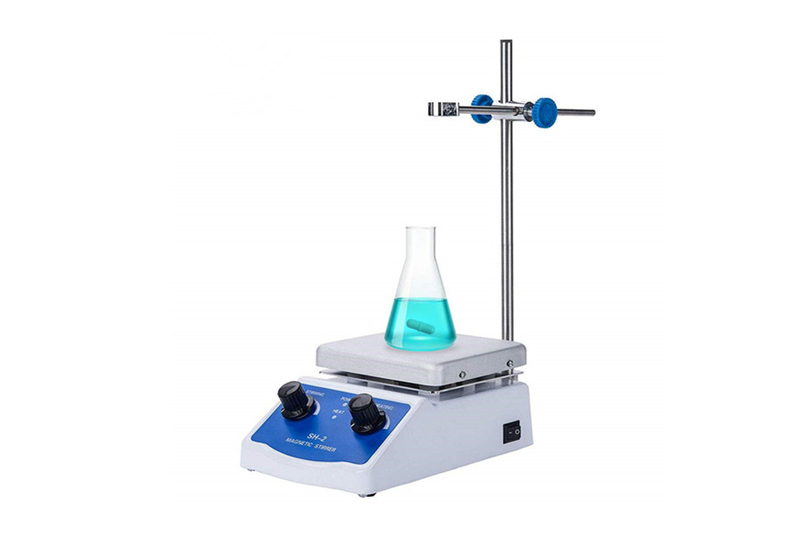

HAIJU LAB  Aluminum Plate Magnetic Stirrer With Hot Plate For Laboratory Chemical

The Ultimate Magnetic Stirrer with Heating
● This hot plate contains an integrated mangnetic stirrer,ideal for use in a laboratory.
● The dual controls allow you to set heat
output and stirring speed indep-endently. The hot plate can reach a maximum temperature of 350°C (716°F) with an output of 180
watts.
● The magnetic stirrer is adjustable from 100 to -2000rpm. A support stand with an adjustable thermometer holder is also
included. The support stand extends about 8-2/3 inch above the hot plate's surface.
● This device is widely used for heating and
stirring in the school laboratory, industrial and mining, food processing, biochemistry, agriculture for the liquid.
Model
Voltage(V)
Power(W)
Speed(r.p.m)
SH-2
110/220
180
100-2000
Plate size(mm)
Max heating temperature(℃)
Max volume(ml)
Product size
Packing size(mm)
120*120
380
2000
200*120*90
265*185*190
1. Stretched shell and cover prevent leaking.

2. Heating and stirring can proceed simultaneously.

3. Enclosed hot plate with flame protection, fast warm-up and durability.

4. Heating Power and stirring speed is stepless adjusted.

5. With the adjustable PT100 sensor rack and stainless steel rods.
Detailed Images


The packing includes the following items:
Items x QTY
Main unit x1
Power Cable x1
Stirrer bar x1
User Manual x1
Rack with Rods x1
Fuse x1

You may need the following products (not included)
1, digital thermometer
2, a beaker or a flask



Best Heating and Stirring Mantle Specifications
Voltage: 110~240V
Power: 180W
Max Temperature Plate Surface: 350℃
Stirring Speed: 100~2000rpm
Max Stirring Volume: 2
Aluminium panel (12cm x 12cm)
Exterior Size: 210x125x90mm
Package Size: 260x175x190mm
N.W.: 1.8kg
G.W.: 2.3kg





Can the equipment control temperature and keep constant temperature?
The control of heating power does not mean that temperature can be controlled (i.e. the temperature cannot be controlled). You
need a thermometer to manually adjust heating operation if you intend to control the temperature.



Can I heat liquid to boiling condition?
It's difficult to perform stirring and heating simultaneously for the stirrer with heating power at 180W only for the stirred
liquid keeps losing heat. As a result, we suggest that stirring shall be stopped when heating is performed, or you can get boiling
liquid by heating and stirring such liquid in a sealed container.
